Turbo Chill Tubes Manufacturer, Supplier And Exporter

Turbo Chill Tubes

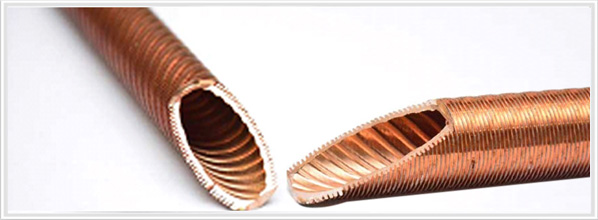

Tube Tech manufactures standard quality Turbo Chill Finned Tubes / Turbo Chill Fin Tubes with great precision. Turbo Chill Finned Tubes / Turbo Chill Fin Tubes was developed as a high performance heat transfer tube for various freezing machines. Turbo Chill Finned Tubes / Turbo Chill Fin Tubes is an Integral Low Finned Tube / Integral Low Fin Tube provided with spiral inside ridges on the inner diameter of the tube. In a Turbo Chill Finned Tube / Turbo Chill Fin Tube, the inside fluid heat transfer capability is remarkably improved in comparison with the smooth in-tube type tubes.

Tube Tech manufactures all types of Turbo Chill Finned Tubes / Turbo Chill Fin Tubes with a variety of outer fins and inner ridge combinations. These turbo chill finned tubes are fabricated in alloy C 12200 to meet the chemical, mechanical and other test parameters of ASTM B 75 / B 359 and in alloy 70600 & 71500 to meet the chemical, mechanical and other test parameters of ASTM B 111 / B 359. BS EN, JIS and DIN standards are also available on request.

Tube Dia Wall Thickness Fin Density Fin Dia Fin Depth Root Dia Wall Thickness under Fins
19.05 mm 1.83 mm 19 / 26 / 40 18.80 mm 1.52 mm 15.76 mm 1.20 mm
19.05 mm 1.65 mm 19 / 26 / 40 18.80 mm 1.50 mm 15.80 mm 1.90 mm
19.05 mm 1.47 mm 19 / 26 / 40 18.80 mm 1.42 mm 15.96 mm 0.71 mm
19.05 mm 1.32 mm 19 / 26 / 40 18.80 mm 1.24 mm 16.32 mm 0.59 mm
19.05 mm 1.18 mm 19 / 26 / 40 18.80 mm 0.83 mm 17.14 mm 0.55 mm
15.87 mm 1.47 mm 19 / 26 / 40 15.70 mm 1.42 mm 12.86 mm 0.71 mm
15.87 mm 1.32 mm 19 / 26 / 40 15.70 mm 1.24 mm 13.22 mm 0.59 mm

Our Speciality


  • • For tube parameters of 22.2 mm, 25.4 mm tube or any other special requirements please contact us.
  • • Turbo Chill tubes with fin density other than mentioned in the chart, can be produced on request.
  • • Turbo Chill Tubes are generally supplied in the “as finned” condition. However, temper annealing or end annealing of alloy 70600 & 71500 can be done upon specific request.
  • • Turbo Chill Tubes are generally produced with desired plain ends, tubes can also be fabricated with intermediate landings upon specific request
  • • Turbo Chill Tubes are produced in straight length up to 8 Meters. Bigger lengths can be accommodated on request.
  • • Turbo Chill Tubes are supplied with deburred / smooth ends.
  • • All the tubes are hydro tested at desired pressure after finning operation to ensure defect free products.

Applications of Turbo Chill Finned Tubes / Turbo Chill Fin Tubes

  • • Turbo Refrigerator
  • • Boilers.
  • • Heat ex-changers for petrochemical industry.
  • • Screw refrigerators.
  • • Absorption Type refrigerators.
