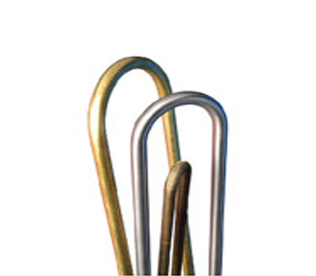

Tube Tech is a leading manufacturer and exporter of Integral Finned U - Bent Tubes or Integral Fin U-Bent Tubes. Fabrication of Integral Finned U - Bent Tubes or Integral Fin U-Bent Tubes can be done according to the require of customer suggested specifications.
Finned U-Bent Tubes / Fin U-Bent Tubes with outer diameters 15.9 mm & 19.05 mm with wall thickness 1.32 mm and above are usual specifications recommended by clients. However, bigger sizes can also be accommodated on request. Bending radius of 1.25 X Diameter and above can be achieved on these integrally finned tubes.
The Integral Finned U-Bent Tubes / Fin U-Bent Tubes are produced, controlled and measured in accordance with SB 395 & TEMA standards.We are capable of producing Integral Finned U-Bent Tubes / Fin U-Bent Tubes in the Leg Length of up to 5 mtrs.

Our Speciality
Integral Finned U-Bent Tubes / Integral Fin U-Bent Tubes are hydro tested after fabrication against any surface defects / leakages.
Tubetech has in house stress relieving facility and Integral Finned U-Bent Tubes / Integral Fin U-Bent Tubes can be heat treated for stress relieving, if required by the Customer.
Integral Finned U-Bent Tubes / Fin U-Bent Tubes produced here at Tubetech are cut to the specified leg lenght, ends deburred and the bores are internally cleaned with dried air before final inspection & packing.

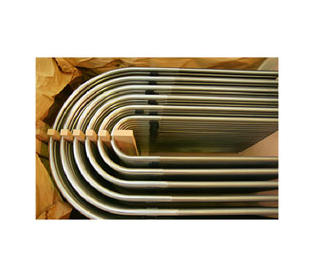

Each bundle of Integral Finned U-Bent Tubes / Fin U-Bent Tubes is protected with plastic sheets. Detailed packing lists are attached to boxes to give quick and clear identification of contents.

Applications of Finned U-Bent Tubes / Fin U- Bent Tubes :
• Space heating
• Refrigeration
• Air conditioning
• Power stations
• Chemical plants
• Petrochemical plants
• Petroleum refineries
• Natural-gas processing
• Sewage treatment

Tube Tech manufactures Plain and finned U – Bent tubes in Copper, Brass, Cupro Nickel, Stainless Steel & Carbon Steel tube materials, according to various heat exchanger standards or to customer's specifications. During U Bending of finned tubes, the Bend portion is generally left unfinned during finning operation to accommodate smooth bending. The Finned U Tubes are produced, controlled and measured in accordance with SB 395 & TEMA standards.

Both Plain U Tubes and Finned U Tubes are hydro tested after fabrication against any surface defects / leakages. We have in house stress relieving facility and these tubes can be heat treated for stress relieving, if required by the Customer. We can offer a range of additional testing on request, including dye penetrant and PMI testing.

U Tubes are cut to the specified leg length, ends deburred and internally cleaned with dried air before final inspection & packing. Each bundle is protected with plastic sheets. Detailed packing lists are attached to boxes to give quick and clear identification of contents.

Standard Dimensions :

• Tube OD: minimum 9.52 mm, Maximum 31.75 mm

• Tube Thickness: 0.9 mm and above

• Fin Density: 19 FPI, 23 FPI, 26 FPI

• Bending Radius: Minimum 1.5 X tube diameter, Maximum 600 mm

• Leg Length: Up to 10 Mtrs

• Tube Material: Copper Tubes, Admiralty Brass Tubes, Aluminum Brass Tubes, Cupro Nickel Tubes, Stainless Steel Tubes, Carbon Steel Tubes

• • For Fin parameters of and surface area chart of Finned U Bent Tubes, please contact us.
• • Finned U Bent tubes with diameters and fin density other than mentioned above, can be produced on request.
• • Admiralty Brass Finned U Bent Tubes, Cupro Nickel Finned U Bent Tubes, Stainless Steel Finned U Bent Tubes and Carbon Steel Finned U Bent Tubes are generally supplied in the “as finned” condition. However, temper annealing OR bend portion annealing is done on request. We have inhouse automatic – self feeding electric annealing furnace.
• • Finned U Bent Tubes are generally produced with desired plain ends.
• • Finned U Bent Tubes are supplied with deburred / smooth ends.
• • All Finned U Bent Tubes are hydro tested at desired pressure after finning operation to ensure defect free products.
