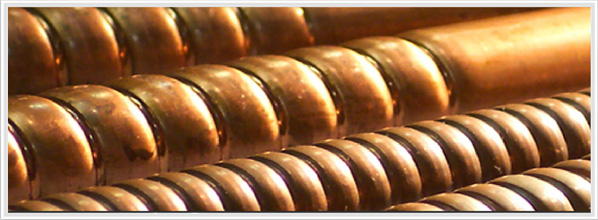

Tube Tech is the leading manufacturer and supplier of Corrugated Fin Tubes / Corrugated Finned Tubes with Internal and external spiral corrugated copper fins of 0.5mm to 1.2mm height. Corrugated Finned Tubes / Corrugated Fin Tubes are made from thin walled smooth tubes of wall thickness as low as 0.5mm. Applying special process, Corrugated Finned Tubes / Corrugated Fin Tubes are fabricated by using a special process where the outer and the inner surfaces are given spiral shaped rotating impressions which equips corrugated tube with excellent thermal properties.
Corrugated Finned Tubes / Corrugated Fin Tubes can be manufacture in Copper, Brass or Cu pro Nickel Tube Material as per the requirement of client. The Corrugated Finned tubes / Corrugated Fin Tubes are available in lengths up to 10meters or more than 10meters as per required by customer.
|Tube Dia||Wall Thickness||Fin Density||Fin Dia||Fin Depth||Root Dia||Wall Thickness under Fins|
|19.05 mm||1.47 mm||40/42/48||18.80 mm||0.71 mm||17.38 mm||1.03 mm|
|19.05 mm||1.12 mm||40/42/48||18.80 mm||0.63 mm||17.38 mm||0.67 mm|
|15.87 mm||1.32 mm||40/42/48||15.70 mm||0.71 mm||14.28 mm||0.57 mm|
Applications of Corrugated Finned Tubes / Corrugated Fin Tubes
