Tube Tech is a leading manufacturer and supplier of all types of Integral Finned Tubes / Integral Fin Tubes (Integral Low finned tubes / Integral Low Fin Tubes, Integral Medium Finned tubes / Integral Medium Fin and Integral High Finned tubes/ Integral High Finned Tubes) as required by our clients. Fabrication of Integral Finned Tubes / Integral Fin Tubes can be done with alloy C 12200 to meet the chemical, mechanical and other test parameters of ASTM B 75 / B 359 and in alloy 44300 / 68700 / 70600 & 71500, SA 179, SS 304, SS 316 & SS 316L to meet the chemical, mechanical and other test parameters of ASTM B 111 / SB 359. BS EN, JIS and DIN standards are also available on request.

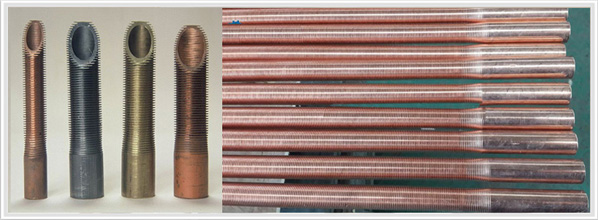

Tube Tech manufactures and supplies a wide range of Integral Low Finned Tubes / Integral Low Fin Tubes in Copper, Brass, Cupro Nickel, Stainless Steel & Carbon Steel tube materials. Integral Low Finned tubes manufactured by Tube Tech are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Due to increased heat transfer surface area, these integral low fin tubes offer considerable potential to savings in terms of materials and fill volumes.
Integral Low Finned Tubes / Integral Low Fin Tubes are used in shell and tube type heat exchangers which helps to improve energy efficiency in refining, petrochemical, LNG, power generation, refrigeration, heating and air conditioning plants world-wide.
| Tube Dia | Wall Thickness | Fin Density | Fin Dia | Fin Depth | Root Dia | Wall Thickness under Fins |
|---|---|---|---|---|---|---|
| 19.05mm | 2.11 mm | 19 / 26 | 18.80mm | 1.60mm | 15.60mm | 1.45mm |
| 19.05 mm | 1.65 mm | 19 / 26 | 18.80 mm | 1.60 mm | 15.60 mm | 1.15 mm |
| 19.05 mm | 1.47 mm | 19 / 26 | 18.80 mm | 1.52 mm | 15.76 mm | 0.90 mm |
| 19.05 mm | 1.32 mm | 19 / 26 | 18.80 mm | 1.45 mm | 15.90 mm | 0.80 mm |
| 19.05 mm | 1.24 mm | 19 / 26 | 18.80 mm | 1.30 mm | 16.20 mm | 0.65 mm |
| 15.87 mm | 2.11 mm | 19 / 26 | 15.70 mm | 1.60 mm | 12.50 mm | 1.45 mm |
| 15.87 mm | 1.65 mm | 19 / 26 | 15.70 mm | 1.60 mm | 12.50 mm | 1.15 mm |
| 15.87 mm | 1.47 mm | 19 / 26 | 15.70 mm | 1.52 mm | 12.66 mm | 0.90 mm |
| 15.87 mm | 1.32 mm | 19 / 26 | 15.70 mm | 1.45 mm | 12.80 mm | 0.80 mm |
| 15.87 mm | 1.24 mm | 19 / 26 | 15.70 mm | 1.30 mm | 13.10 mm | 0.65 mm |
| 12.70 mm | 1.65 mm | 19 / 26 | 12.55 mm | 1.35 mm | 9.85 mm | 1.15 mm |
| 12.70 mm | 1.47 mm | 19 / 26 | 12.55 mm | 1.25 mm | 10.05 mm | 0.90 mm |
| 12.70 mm | 1.32 mm | 19 / 26 | 12.55 mm | 1.18 mm | 10.19 mm | 0.80 mm |
| 12.70 mm | 1.24 mm | 19 / 26 | 12.55 mm | 1.05 mm | 10.45 mm | 0.65 mm |
Application of Finned Tubed in Industries
